an issue with a dynamic view created in PAW and shown in Arc

Arc & Slice
1

Hello,

I have a small or strange issue now with view presentation in Arc.
I created a dynamic view in PAW with Member, with target selection as also a lookup cube, to get some elements and now only see the dimensions being mentioned for the column and row but not all of them.

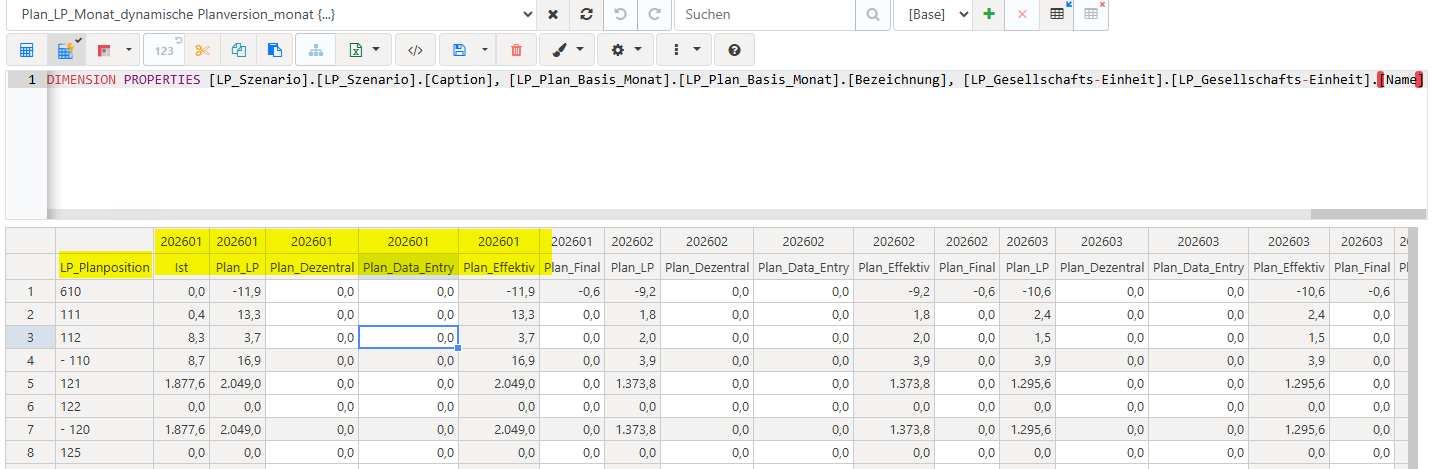

The standard way is like following:
you see all the dimensions of the view in context / row and columns

image1359×693 40.3 KB

Also if you go the MDX editor, you see it formatted.

In my case now, it looks like the following:

I see only the dimensions from the row and from the columns, but not from the context.
It is the same cube as above.
And also for the MDX, it is not formatted, however, it is not the biggest issue here.

image1436×469 31.7 KB

I’m now on version 5.2.0.

With best regards,
Vitalij

2

If you created the view using WITH statement (calculated members) it may not be displayed in Arc Cube Viewer - mdx parser fails and the cube viewer shows you a basic table.

When WITH statement is generated by Arc for virtual consolidations then the cube viewer will be displayed correctly.

We will need to check how this works in PAW and bring it over to Arc.

Thanks.

3

Hello,
yes, it is a WITH statement from PAW.
I see that for the screen with the MDX statement I havent started this at the beginning.

With best regards,
Vitalij
